5-Axis Precision Laser Cutting

High-precision off-axis laser cutting for complex medical tube geometry.

Best Fit For:Engineers designing parts with complex 3D features on tubing.

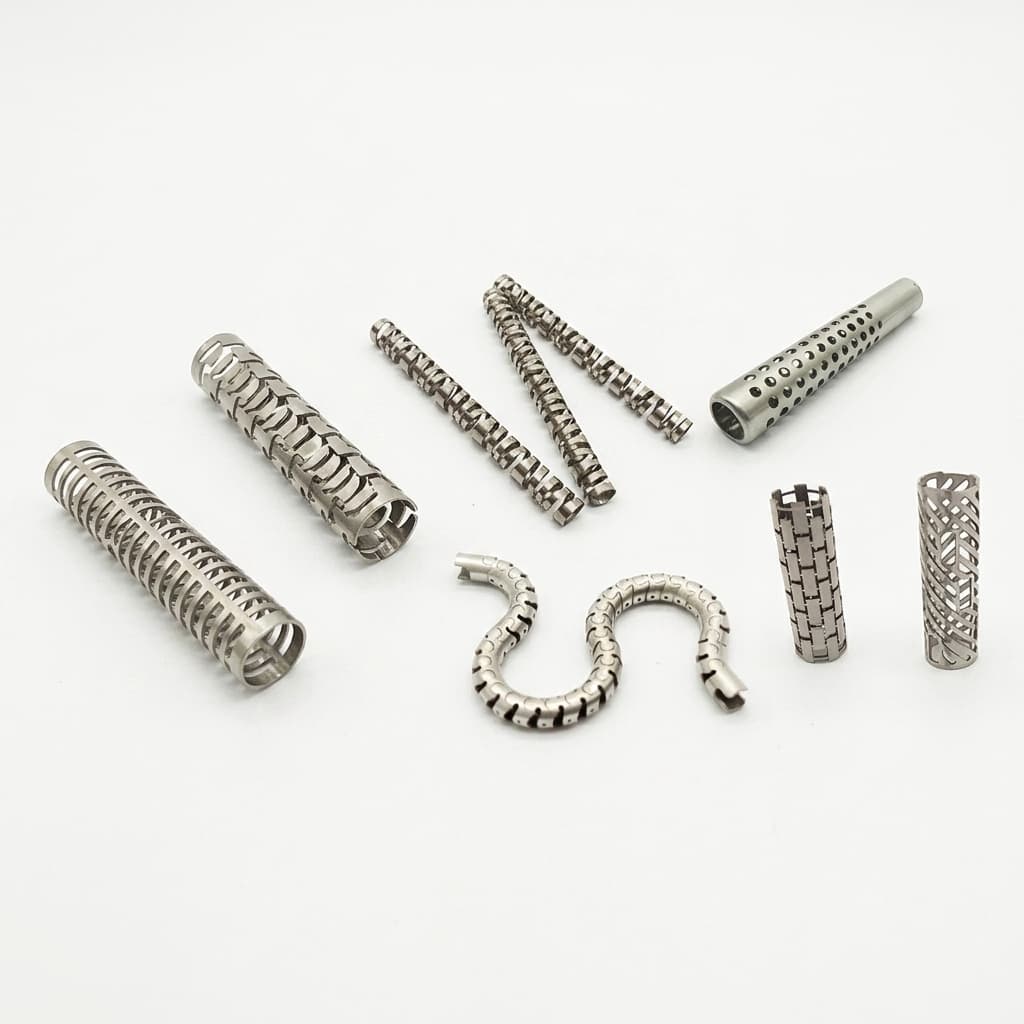

5-axis laser-cut hypotube pattern for catheter tube review

Capability Highlights

Off-axis cutting
Controlled HAZ strategy
Micron-level feature review

Typical Engagement Scope

Asymmetric hypotubes
Complex delivery systems
Surgical tools

Execution Focus

Kerf control
HAZ reduction
3D geometry validation

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Kerf width	10-20 um	Enables intricate feature creation.
Tube geometry	Round, asymmetric, skived, windowed, angled features	Supports catheter shafts that need more than straight 2D slots.
DFM inputs	STEP, DXF, DWG, PDF drawing pack	Lets engineers review reach angle, fixturing, and heat risk early.

Capability Selection Logic

Decision Factor	Confirm Before Quote	Buyer Impact
Geometry complexity	Straight slots, off-axis windows, angled cuts, skives, flats, or 3D tube features.	Determines whether simple rotary cutting is enough or true 5-axis access is needed.
Heat and edge sensitivity	Material, wall thickness, HAZ/recast tolerance, burr limit, and fatigue-risk regions.	Guides laser type, assist gas, cut speed, and post-processing route.
File readiness	STEP, DXF, DWG, PDF drawing, feature datum, CTQ callouts, and inspection plan.	Reduces back-and-forth before programming and fixture planning.

RFQ Preparation Checklist

Provide 3D CAD models
Define critical off-axis features
Specify allowable HAZ

Risk and Mitigation

Thermal damage: Use ultrafast femtosecond lasers where applicable.
Feature misalignment on complex geometry: Confirm datum, tube rotation, off-axis feature position, fixture plan, and inspection method before programming.

Process and Quality Flow

CAD and access review: Evaluate feature orientation, reach angle, tube datum, rotation strategy, and fixture constraints.
Process setup: Select laser settings, assist gas, mandrel support, and cut order for the tube geometry.
Feature cutting: Cut off-axis windows, slots, skives, holes, or complex patterns with controlled kerf and heat input.
Edge release: Inspect feature dimensions, burr condition, HAZ/recast risk, and finishing requirements before shipment.

Quality Evidence Buyers Can Request

Feature inspection for kerf, position, slot width, bridge, and geometry
Microscopic edge review for burr, HAZ, slag, and recast
Drawing revision and CAD file traceability
Post-cut finishing record when electropolishing or passivation is specified

Related Products

precision laser tube cutting sample for kerf and slot review

laser-cut micro tube component for off-axis feature planning

medical tube laser cutting sample for bridge and transition review

5-axis laser-cut catheter tube for edge-condition inspection

Buyer FAQ

Do you need a 3D model?

Yes, STEP files are preferred for 5-axis work.

When is 5-axis laser cutting required instead of rotary tube cutting?

Use 5-axis cutting when features are off-axis, angled, asymmetric, skived, windowed, or require access that a simple rotary setup cannot hold accurately.

Related Buyer Paths

Resources & Capabilities

RFQ Checklist

Applications

Product Paths

Inquiry Email

[email protected]

Email app

Best for drawings, tolerance tables, inspection needs, and quote history.

Instant Chat

+8618857971991

Chat on WhatsApp

Fast path for OD/ID, material, sample quantity, and lead-time questions.

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Kerf width	10-20 um	Enables intricate feature creation.
Tube geometry	Round, asymmetric, skived, windowed, angled features	Supports catheter shafts that need more than straight 2D slots.
DFM inputs	STEP, DXF, DWG, PDF drawing pack	Lets engineers review reach angle, fixturing, and heat risk early.

Capability Selection Logic

Decision Factor	Confirm Before Quote	Buyer Impact
Geometry complexity	Straight slots, off-axis windows, angled cuts, skives, flats, or 3D tube features.	Determines whether simple rotary cutting is enough or true 5-axis access is needed.
Heat and edge sensitivity	Material, wall thickness, HAZ/recast tolerance, burr limit, and fatigue-risk regions.	Guides laser type, assist gas, cut speed, and post-processing route.
File readiness	STEP, DXF, DWG, PDF drawing, feature datum, CTQ callouts, and inspection plan.	Reduces back-and-forth before programming and fixture planning.

Process and Quality Flow

CAD and access review: Evaluate feature orientation, reach angle, tube datum, rotation strategy, and fixture constraints.

Process setup: Select laser settings, assist gas, mandrel support, and cut order for the tube geometry.

Feature cutting: Cut off-axis windows, slots, skives, holes, or complex patterns with controlled kerf and heat input.

Edge release: Inspect feature dimensions, burr condition, HAZ/recast risk, and finishing requirements before shipment.
