Medical Hypotube Miniaturization: Navigating Ultra-Thin Walls for Neurovascular Catheters

The landscape of minimally invasive surgery is shrinking. As neurovascular, cardiovascular, and structural heart interventions become more advanced, the devices required to navigate deep into tortuous anatomies must feature increasingly smaller profiles. At the core of these delivery systems and endoscopes is the medical hypotube.

When engineers push to maximize the internal lumen (ID) for device delivery while minimizing the outer profile (OD) to access distal vessels, the result is an ultra-thin wall hypotube. Sourcing and manufacturing these micro-components introduces exponential challenges in drawing, centerless grinding, and laser processing.

In this comprehensive guide, we bridge the gap between R&D engineering and procurement. We explore the boundaries of hypotube miniaturization, how over-specifying tolerances skyrockets scrap rates, and the critical design decisions necessary to balance clinical performance with manufacturing costs.

If you already have a drawing stack with OD, ID, wall, concentricity, and laser pattern limits, use this guide as a pre-RFQ screen before sending the dimensions to our engineering team.

---

1. What Qualifies as "Ultra-Thin" in Medical Hypotubes?

While standard medical tubing typically features wall thicknesses between 0.003" (0.076 mm) and 0.005" (0.127 mm), "ultra-thin" or "micro-wall" hypotubes cross a highly demanding manufacturing threshold.

In modern neurovascular catheter design, an ultra-thin wall is generally defined as a wall thickness of 0.002" (50 µm) or less, often reaching down to 0.0005" (12.7 µm) in specialized polyimide-lined or premium metal alloy segments. Furthermore, the Outer Diameter (OD) is frequently less than 0.020" (0.50 mm).

Drawing metal alloys to these dimensions without introducing micro-cracks, loss of concentricity, or surface galling requires state-of-the-art multi-pass drawing techniques, strict temperature controls, and continuous Statistical Process Control (SPC).

---

2. The Core Engineering Conflict: Pushability vs. Trackability

When a hypotube's wall thickness drops below 0.002", its mechanical behavior fundamentally changes. Engineers must carefully balance three critical performance metrics:

1. Trackability: The ability of the catheter to follow a guidewire through highly tortuous paths (such as the Circle of Willis in the brain). Thinner walls drastically improve trackability by lowering the bending stiffness.
2. Pushability (Column Strength): The ability to transmit force from the physician's hand to the distal tip without the shaft buckling. Ultra-thin walls significantly reduce the cross-sectional area, drastically lowering column strength and increasing the risk of buckling in calcified lesions.
3. Torque Response: The 1:1 rotational transmission. While thin walls improve flexibility, they can compromise the torsional rigidity, leading to "whip" if not supported by external braiding or specialized laser-cut patterns.

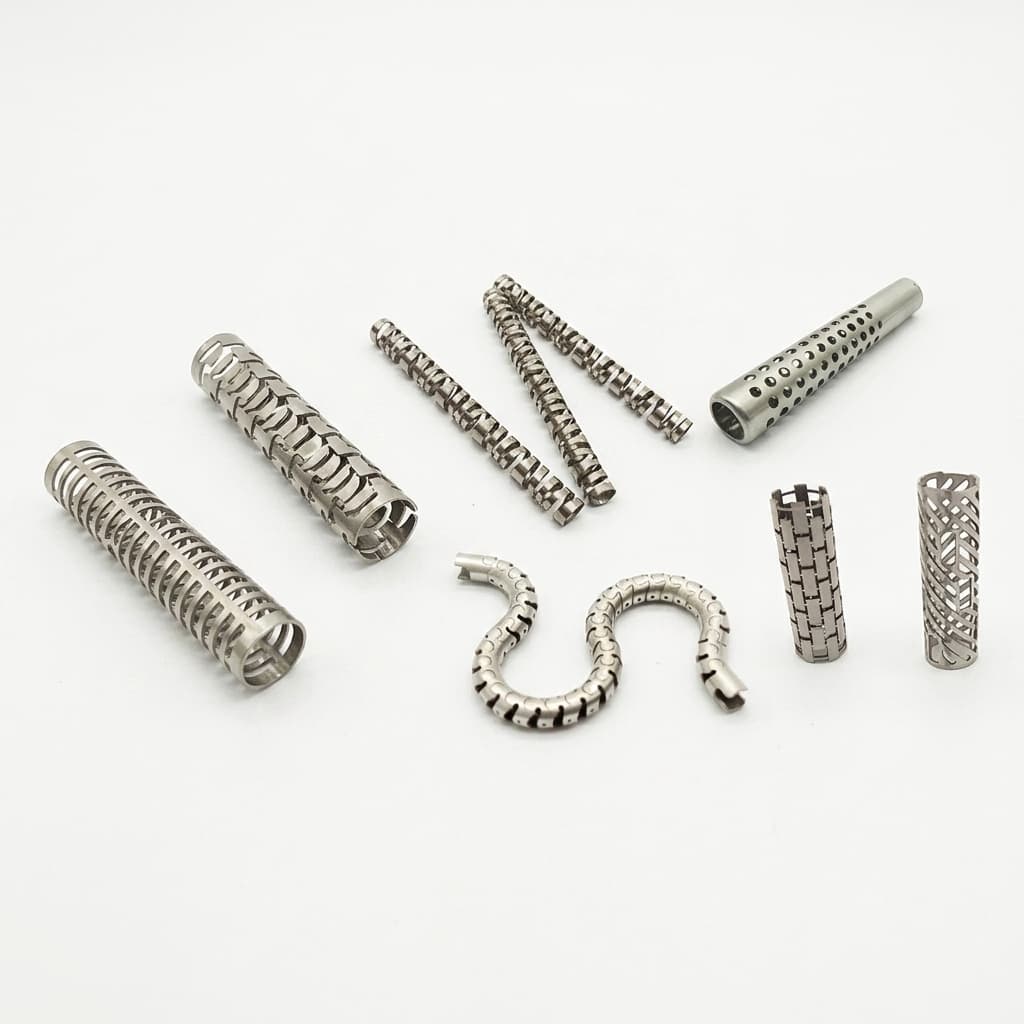

For pattern-level inputs such as cut pitch, bridge width, transition zones, and acceptance criteria, see our guide on how to specify laser-cut hypotube patterns.

---

3. The "Datum Dilemma" in Ultra-Thin Tube Design

One of the most common mistakes R&D teams make—and procurement teams pay for—is over-constraining the drawing dimensions.

When designing a catheter, engineers usually have a strict OD limit (to fit through a specific guide catheter) and a strict ID limit (to allow a specific device, like a stent or coil, to pass through). Consequently, drawings often specify tight tolerances on OD, ID, and Wall Thickness simultaneously.

Mathematically and practically, you cannot independently control all three. In ultra-thin hypotubes, normal variations in concentricity mean that if the OD and ID are held to rigid limits, the wall thickness will naturally fluctuate.

The Solution: Prioritize Two Variables

To reduce lead times and quoting costs, buyers and engineers must align on which two dimensions are critical.

• Delivery Lumen Critical: Specify the ID (to guarantee device passage) and the Wall Thickness (to guarantee strength). Leave the OD as a "Reference Dimension" (REF).
• Access Profile Critical: Specify the OD (to guarantee it fits the guide sheath) and the ID (for device passage). Allow the Wall Thickness to float within a wider tolerance band.

---

4. Material Selection: Stainless Steel vs. Nitinol at Micro-Scales

The debate between 304V Stainless Steel and Superelastic Nitinol changes dramatically when dealing with ultra-thin walls.

304V / 316L Stainless Steel

Standard stainless steel is cost-effective, easy to laser cut, and highly weldable. However, as walls drop below 0.002", standard stainless steel becomes highly susceptible to plastic deformation (kinking). A tight bend in the neuro-anatomy can cause the thin steel wall to permanently buckle, locking the guidewire or therapeutic device inside the lumen.

Superelastic Nitinol (NiTi)

For ultra-thin applications, Nitinol is rapidly becoming the gold standard. Its shape-memory and superelastic phase-transformation properties allow it to undergo up to 8% recoverable strain. An ultra-thin Nitinol tube can navigate tortuous loops that would instantly crush a stainless steel equivalent. However, Nitinol is significantly more expensive, difficult to laser-weld to dissimilar metals, and requires precise thermal management during laser cutting to avoid destroying the superelasticity.

For a broader material trade-off review before narrowing the RFQ, compare Nitinol vs. stainless steel in catheter design.

---

5. Manufacturing Capability & Cost Matrix

Understanding how tolerances affect the Process Capability Index (Cpk) is crucial for procurement. A standard Cpk target is ≥ 1.33. Pushing tolerances tighter than the process capability forces manufacturers to rely on 100% inspection and high scrap rates to meet your order, multiplying your cost.

Table 1: The correlation between specified tolerances and manufacturing difficulty in ultra-thin hypotubes.

Procurement & Engineering Joint Decision Matrix

To further clarify the boundaries of application and align buyer decision points with engineering requirements, the following matrix breaks down how to negotiate specifications with suppliers based on the primary clinical objective.

Table 2: Procurement and Engineering Decision Matrix detailing buyer decision points, failure risks, and communication strategies for hypotube sourcing.

---

6. Laser Cutting and Secondary Operations

Once the ultra-thin raw tubing is drawn, it usually requires secondary operations to impart flexibility. Laser cutting micro-patterns (like interrupted spirals or puzzle-piece interlocking geometries) into a 0.001" wall is exceptionally difficult.

• Heat Affected Zone (HAZ): The laser's thermal energy can easily jump the lumen and melt the opposite wall. To prevent this, manufacturers must use ultra-short pulse (femtosecond) lasers or run chilled fluids through the ID during cutting.
• Slag and Dross Removal: Removing molten spatter from a 0.010" ID lumen is notoriously difficult. Standard mechanical honing is impossible; instead, specialized chemical etching and burr-free electropolishing must be employed to ensure ISO 10993 biocompatibility.

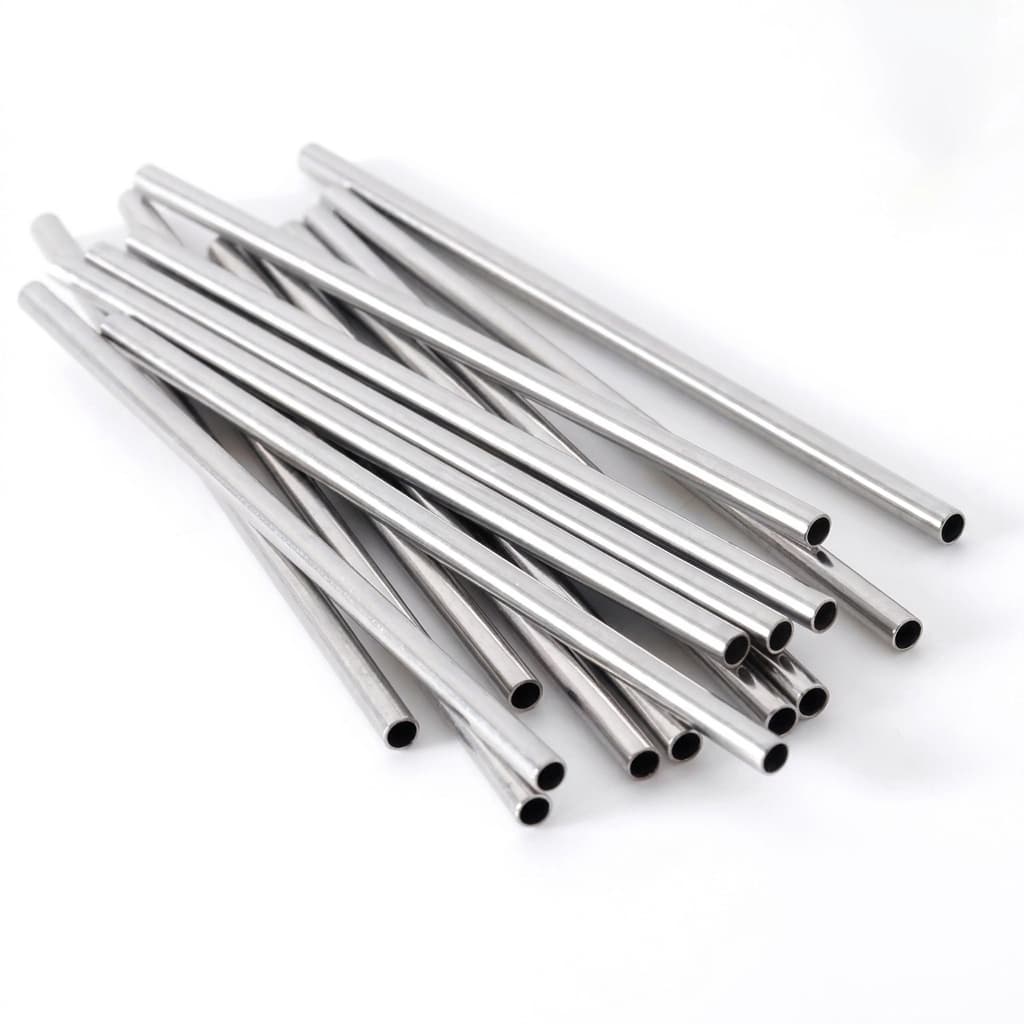

If the lumen finish is a critical device-delivery variable, review the acceptance criteria in our electropolishing medical hypotubes surface-finish guide before locking the drawing note.

---

7. Preventing Miniature Failure Modes

Procurement and quality teams should watch for three primary failure modes in ultra-thin hypotubes during verification testing:

1. Micro-Kinking (Buckling): Occurs during push maneuvers. Prevention: Shift from Stainless to Nitinol, or utilize a tightly wound external coil over the hypotube to restrict outward buckling.
2. Tensile Elongation: Occurs when the physician withdraws the catheter forcefully if it becomes wedged. Because the cross-sectional area of a thin wall is so small, the tube can stretch plastically. Prevention: Ensure the tensile strength requirements align with the reduced cross-sectional area, or integrate Kevlar/LCP pull-wires.
3. Corrosion / Nickel Leaching: High-heat laser cutting can deplete the protective titanium oxide layer on Nitinol, exposing nickel. Prevention: Specify dark-oxide or precise electropolishing finishes on the RFQ.

---

8. Sourcing & Engineering Checklist for Buyers

Before sending an RFQ for an ultra-thin hypotube, run your drawing through this alignment checklist to ensure you receive fast, accurate quotes and avoid "no-bid" rejections from top-tier suppliers.

For programs that still need supplier capability mapping, the medical tube product capabilities page summarizes the component families that can be paired with this checklist.

• Eliminate Triple-Constraints: Ensure you have defined only two primary datums (e.g., ID and Wall). Mark the third dimension (OD) as REF (Reference).
• Verify Cpk Realism: Check if your requested tolerances fall into the "Standard" or "Premium" buckets in Table 1. If premium, verify with R&D if the clinical application genuinely requires it.
• Specify Concentricity Properly: Define concentricity as a percentage of the wall thickness or Total Indicator Reading (TIR), rather than an absolute tight band.
• Define Surface Finish: Clearly state the requirements for the ID surface. Specify "burr-free electropolished" if a guidewire needs to pass with low friction.
• Material Phase (Nitinol Only): If ordering superelastic Nitinol, explicitly specify the Active Af (Austenite Finish) temperature relative to body temperature (~37°C).

---

9. Frequently Asked Questions (FAQ)

Q: Why is my supplier quoting a 16-week lead time for a 0.001" wall stainless steel tube?

A: Ultra-thin walls require custom raw material ingots, specialized diamond drawing dies, and multiple cold-drawing passes with intermediate vacuum annealing. The process is slow and highly sensitive to breakage, requiring significant buffer time.

Q: Can we laser-weld a Nitinol distal tip to a stainless steel proximal shaft?

A: Yes, but joining dissimilar metals is highly complex due to the formation of brittle intermetallic compounds (like TiFe). It requires specialized intermediate materials (e.g., Tantalum or Nickel interfaces) or mechanical crimping/swaging techniques.

Q: Does a tighter tolerance mean a better catheter?

A: Not necessarily. A tighter tolerance ensures consistency, but over-specifying OD/ID limits often leads to micro-stresses in the tube during manufacturing, which can actually lower the fatigue life of the catheter in vivo.

Q: How do we inspect the ID of an ultra-thin hypotube?

A: Traditional pin gauges cannot be used as they may scratch the delicate lumen. Advanced manufacturers utilize non-contact optical comparators, laser micrometers, and high-resolution air gauging systems.

Q: What is the ideal surface finish for a hypotube ID to ensure smooth device delivery?

A: The surface finish must be smooth enough to minimize friction but not so uniform that it creates a vacuum effect. A standard Ra of 0.4 µm (16 µin) is typical, but for ultra-thin applications, chemical etching or electropolishing is highly recommended to remove micro-burrs left from plug drawing.

Q: Why do suppliers frequently "no-bid" our micro-wall hypotube RFQs?

A: "No-bids" usually occur when the drawing over-constrains the datums (specifying strict OD, ID, and Wall simultaneously), mandates a tight concentricity without allowing for eccentricity drift, or specifies an alloy that the supplier cannot source in ultra-thin ingot formats. Simplifying the drawing to standard process capabilities usually resolves this.

---

Sources & References

To ensure engineering validity and procurement accuracy, the data and recommendations in this guide are grounded in established industry manufacturing standards:

1. TE Connectivity Medical Tubing - Medical metal tubing and laser-processing capability context for catheter hypotube programs.
2. MD+DI Online: Custom Medical Tubing Specs - Practical guidance on specifying dimensions, tolerances, and supplier communication for custom medical tubing.
3. FDA: Technical Considerations for Non-Clinical Assessment of Medical Devices Containing Nitinol - Regulatory guidance for nitinol device characterization, mechanical testing, corrosion, and processing sensitivity.
4. ASTM F2633: Wrought Seamless Nickel-Titanium Shape Memory Alloy Tube - Standard scope for medical-grade seamless NiTi tubes, material condition, dimensions, and mechanical-property expectations.

---
